Lighting AF4S-LED 4″X4″

lighting

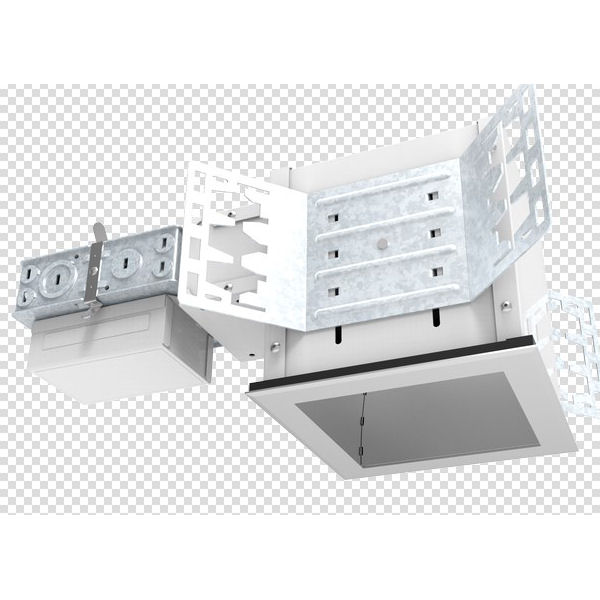

Square Horizontal LED Recessed Downlight
Specifications
Item No.:AF4S-LED
Power Input 32 w
Voltage Input 90 -305 VAC
HZ 50/60Hz
Power Factor PF>0.98
Dimming Way NONE/RD0-10V
Warranty / Certifications
For complete warranty details, please call (918) 951-8749

Mounting

1) Constructed from 16-gauge steel,die-formed construction for max heat dissipation and rust protection
2) Precision tooled springs secure trim to mounting frame for effortless and tool-less installation
3) Compatible with C-channel, flat bar, wood joist bar ahanger and EMT.
4) Fully assembled for ease of installation
5) Non-IC housing require a minimum clearance of 3″ around from thermal insulation and 1/2″ from combustible material from above the fixture
6) Ceiling thickness: 1/2″-3/2″

Junction Box

1) Pre-wired junction box provided with 1/2″ and 3/4″ knockouts, romex kncokouts with pry-out slots and strain clamps
2) Provided with removable access plates
3) Knockouts equipped with pry out slots
4) All leads are #18AWG wire, the ground wire connected to the bottom and quick connectors are supplied on all leads
5) Through branch circuit wiring(4 in, 4 out)

Reflector Option

1) High quality reflector with 1.2mm thickness avalable finishes and types in multiple architectural finishes and types
AF4S-LED
AF4S-LED-EM  With Emergency System
2) Optional painted white flange is available
3) Single position optics eliminate possibility of specified lamp being installed in incorrect position

Thermal Protector

1) Meet ETL requirements
2) Standard thermal protection device guards against improper installation, over lamping and misuse of insulation material
3) External thermal device located on the junction box wrap

Listing

ETL listed for damp location W/Feed through

Packing

50.5 X 36 X 16 CM 2PCS/CT
